Darklight D-Link Connection Diagrams

Created: March 05, 2026

Author: Patrick Copley

Edited: March 05, 2026

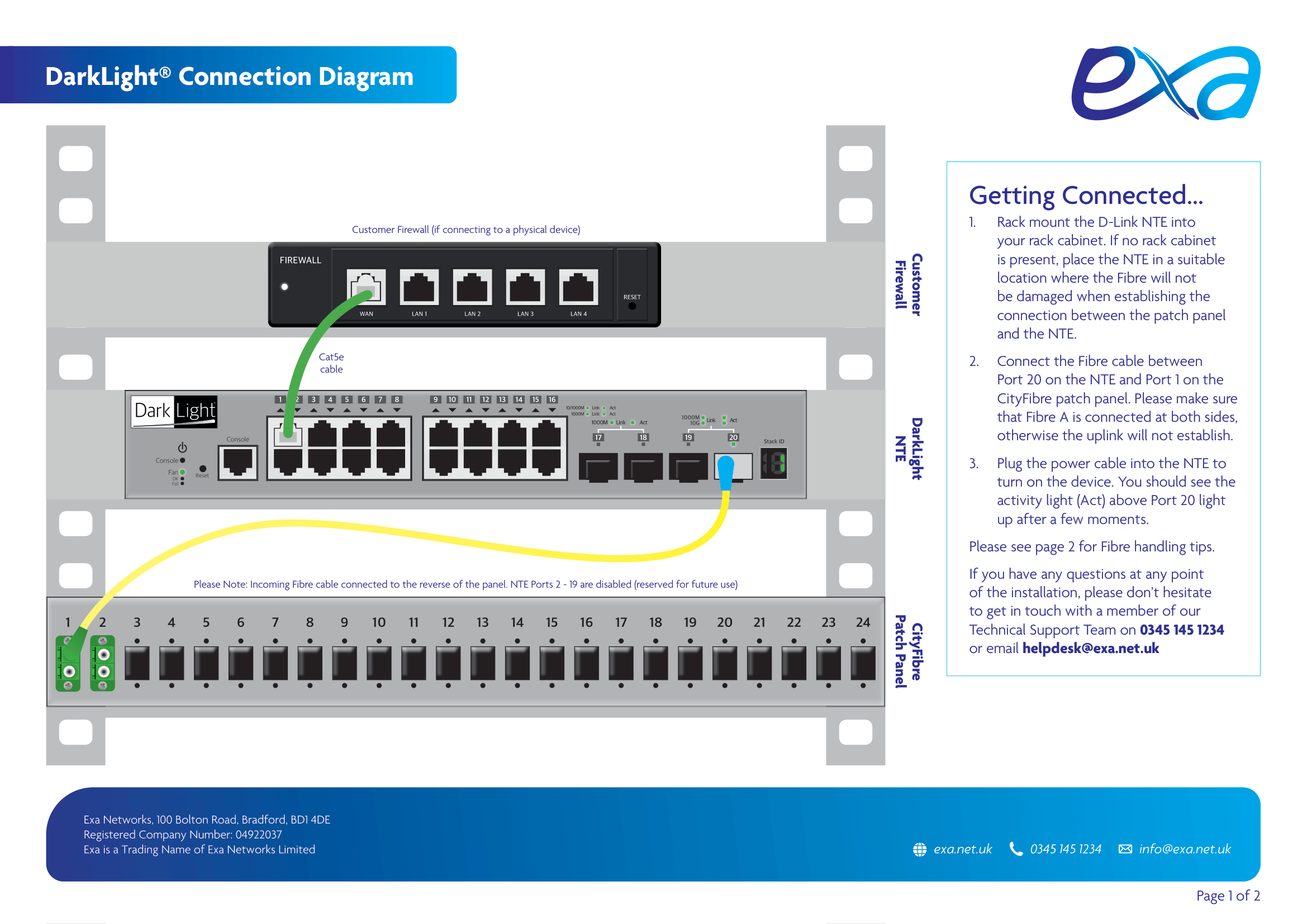

Below you will find the connection diagrams to help you connect up your D-Link switch. The diagrams vary depending on whether you use SurfProtect filtering, or not. If you use SurfProtect, please use the diagram that contains the Ubiquiti router also.

If you are unsure what connection type you have, please call the Helpdesk on 0345 145 1234, and the team will be happy to confirm this for you.
