Fortigate Connection Diagrams

Below you will find the connection diagrams to help you connect up your FortiGate firewall. The diagrams vary depending on which router you are connecting the firewall to. Please use the diagram that contains the router you have.

If you are unsure what connection router you have, please call the Helpdesk on 0345 145 1234, and the team will be happy to confirm this for you.

• Fortigate to Draytek
• Fortiagte to Ubiquiti 4/8
• Fortiagte to Ubiquiti X

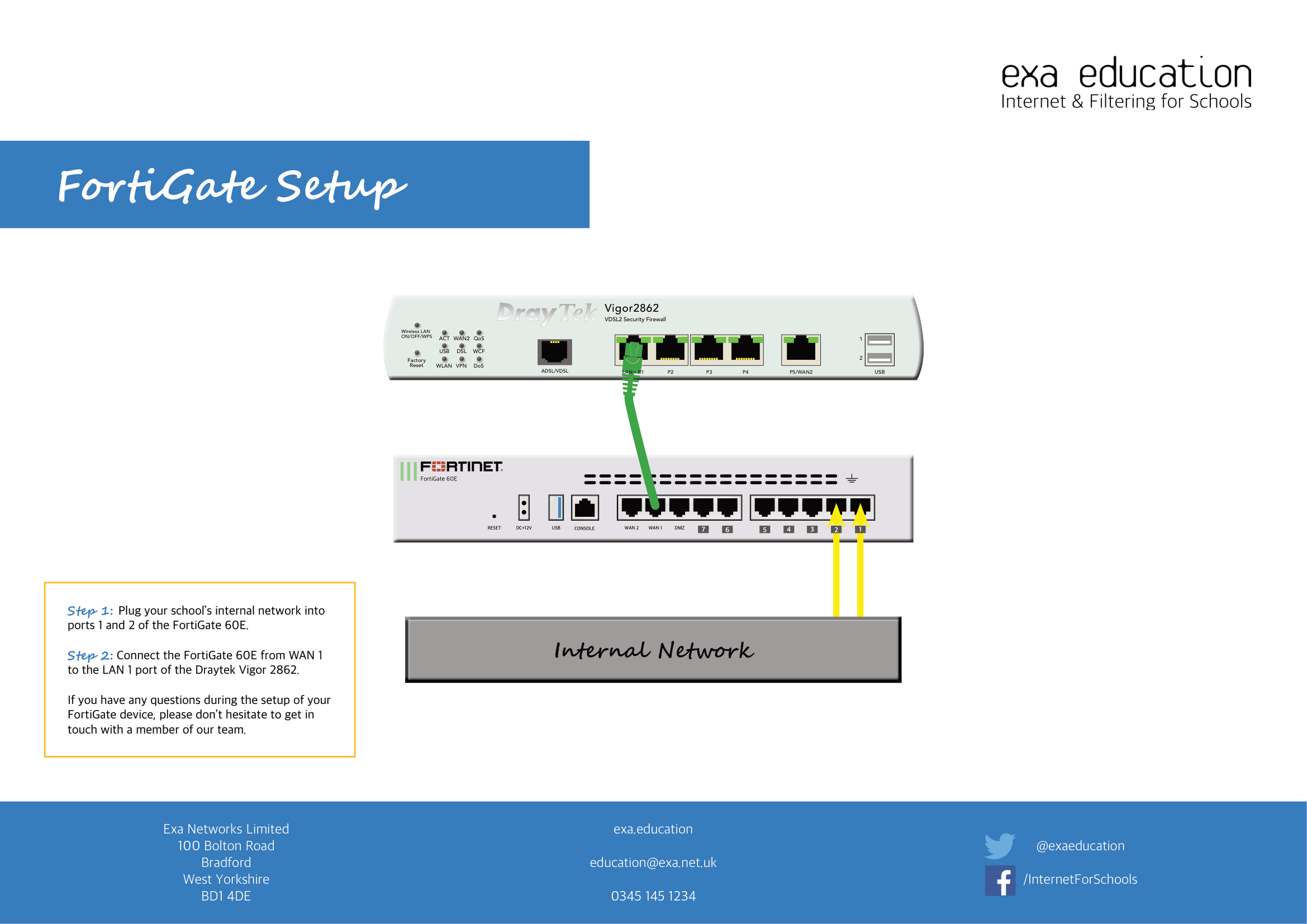

↓ Fortigate 60E ↓

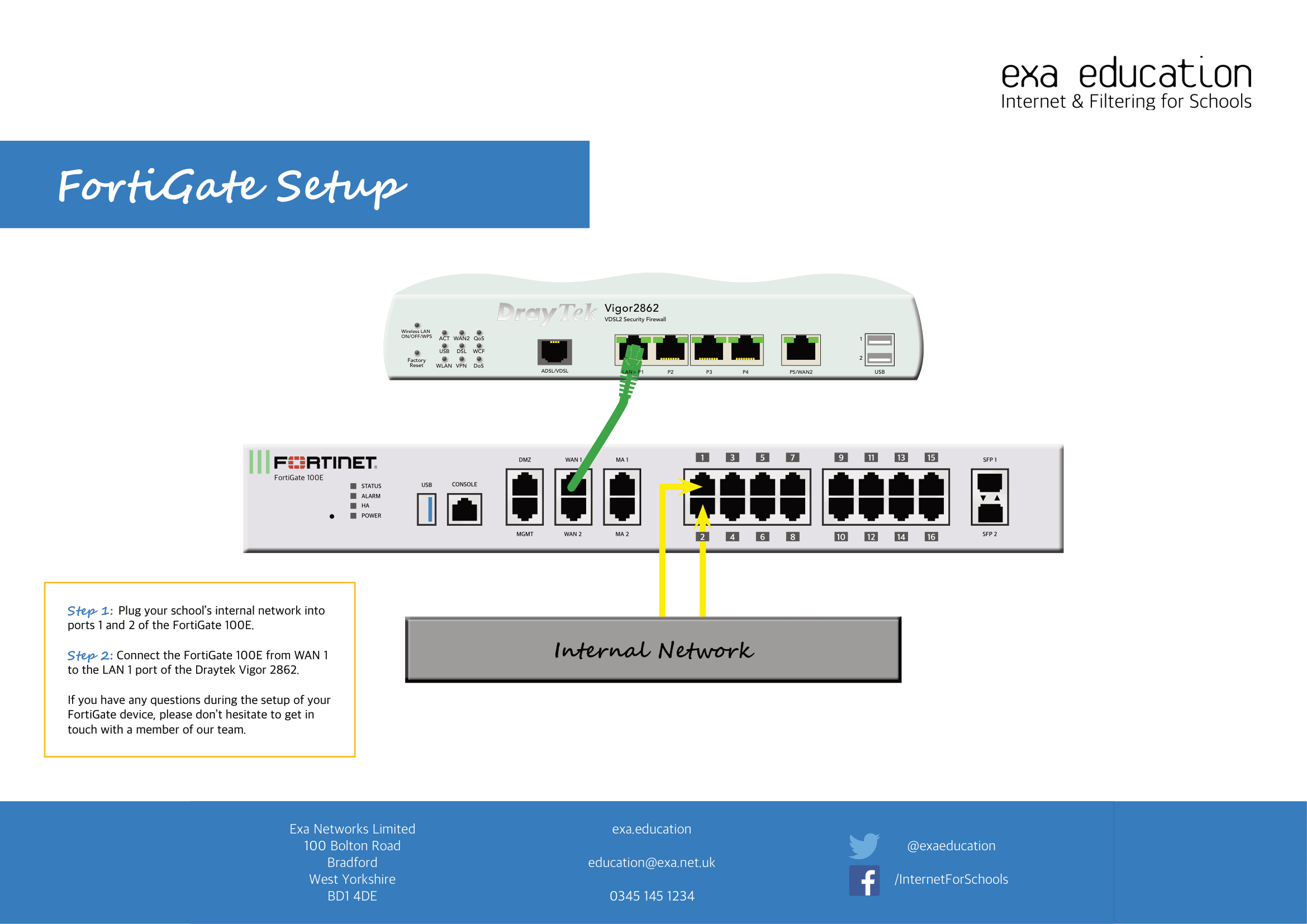

↓ Fortigate 100E ↓

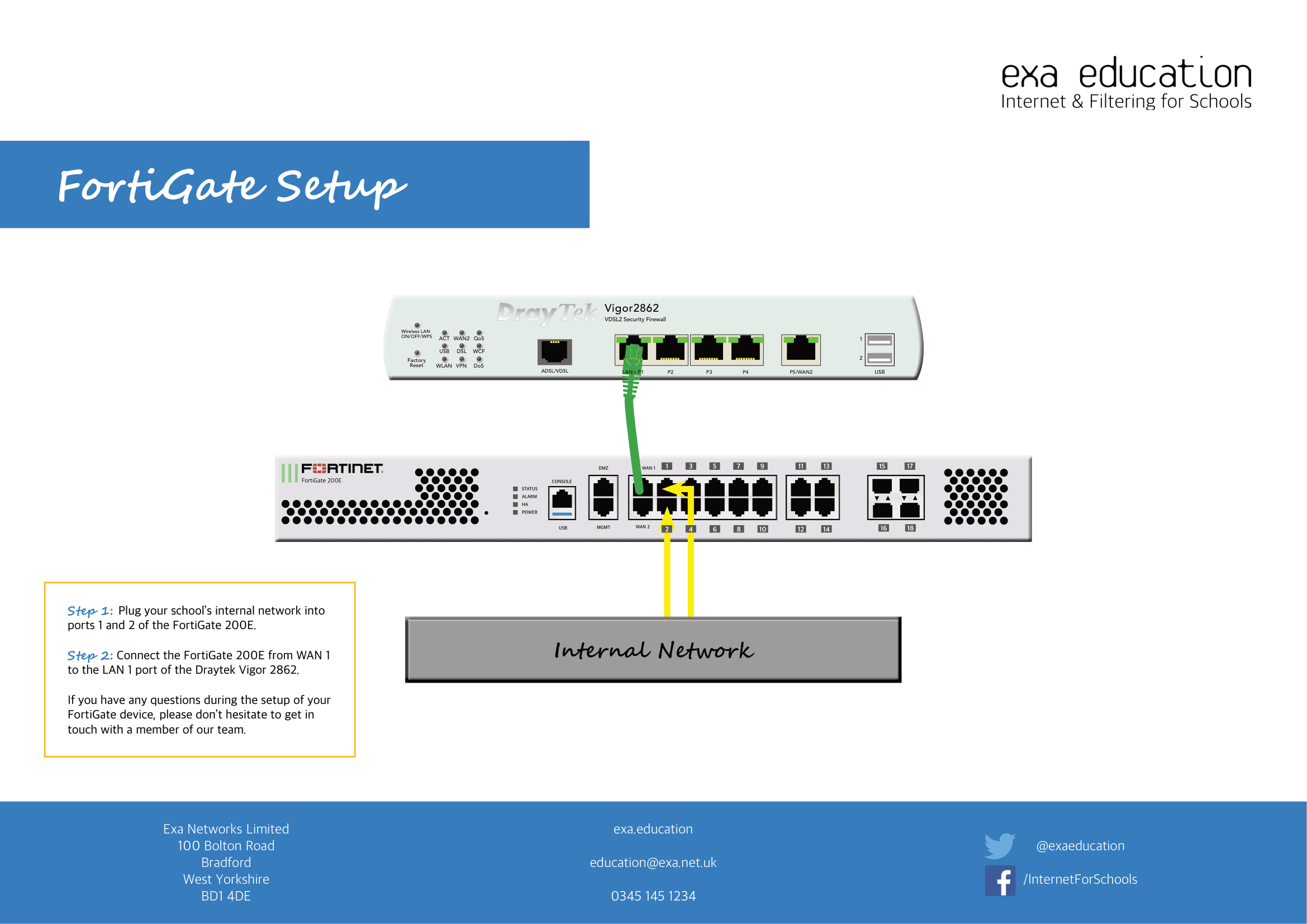

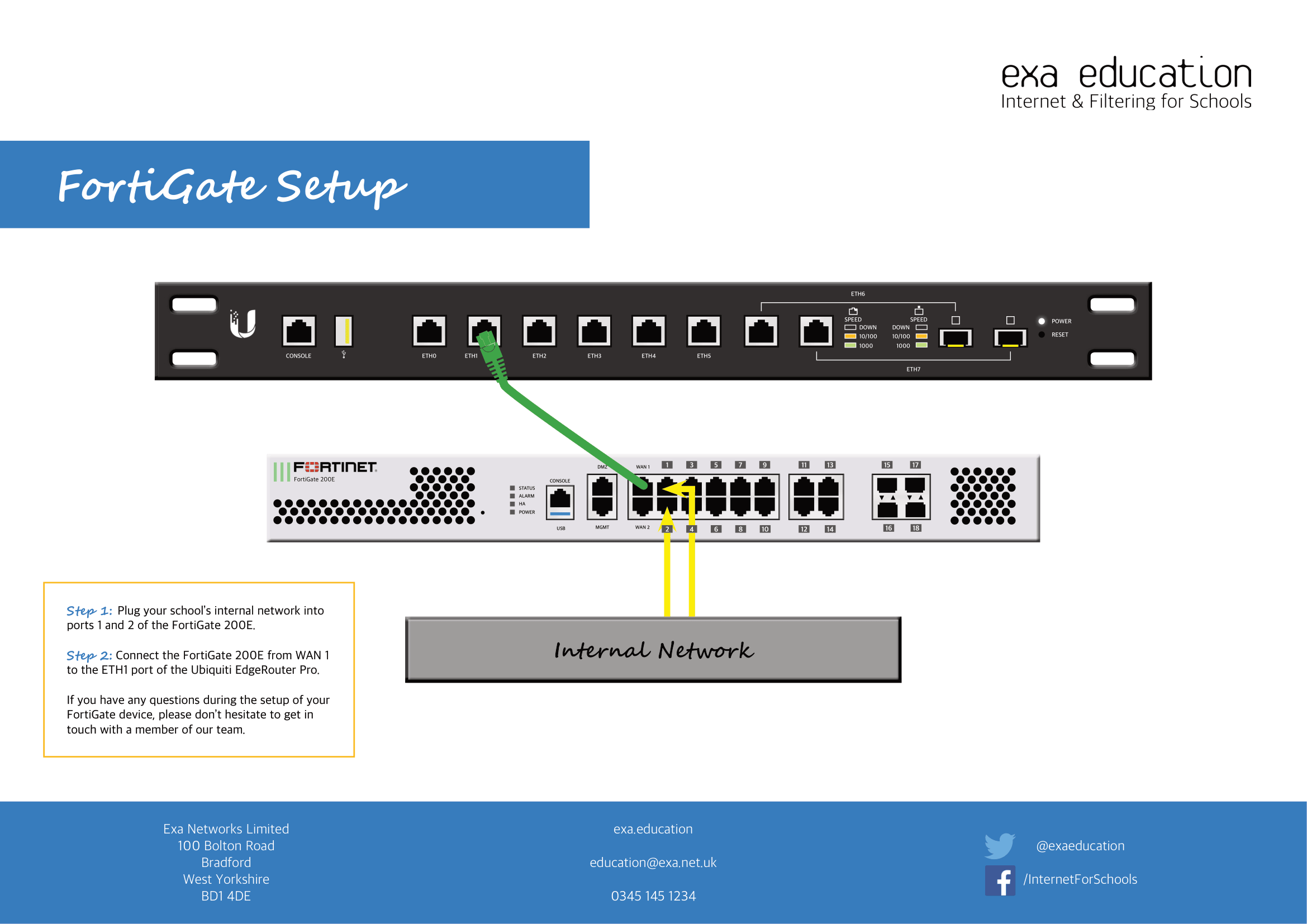

↓ Fortigate 200E ↓

↓ Fortigate 60E ↓

↓ Fortigate 100E ↓

↓ Fortigate 200E ↓

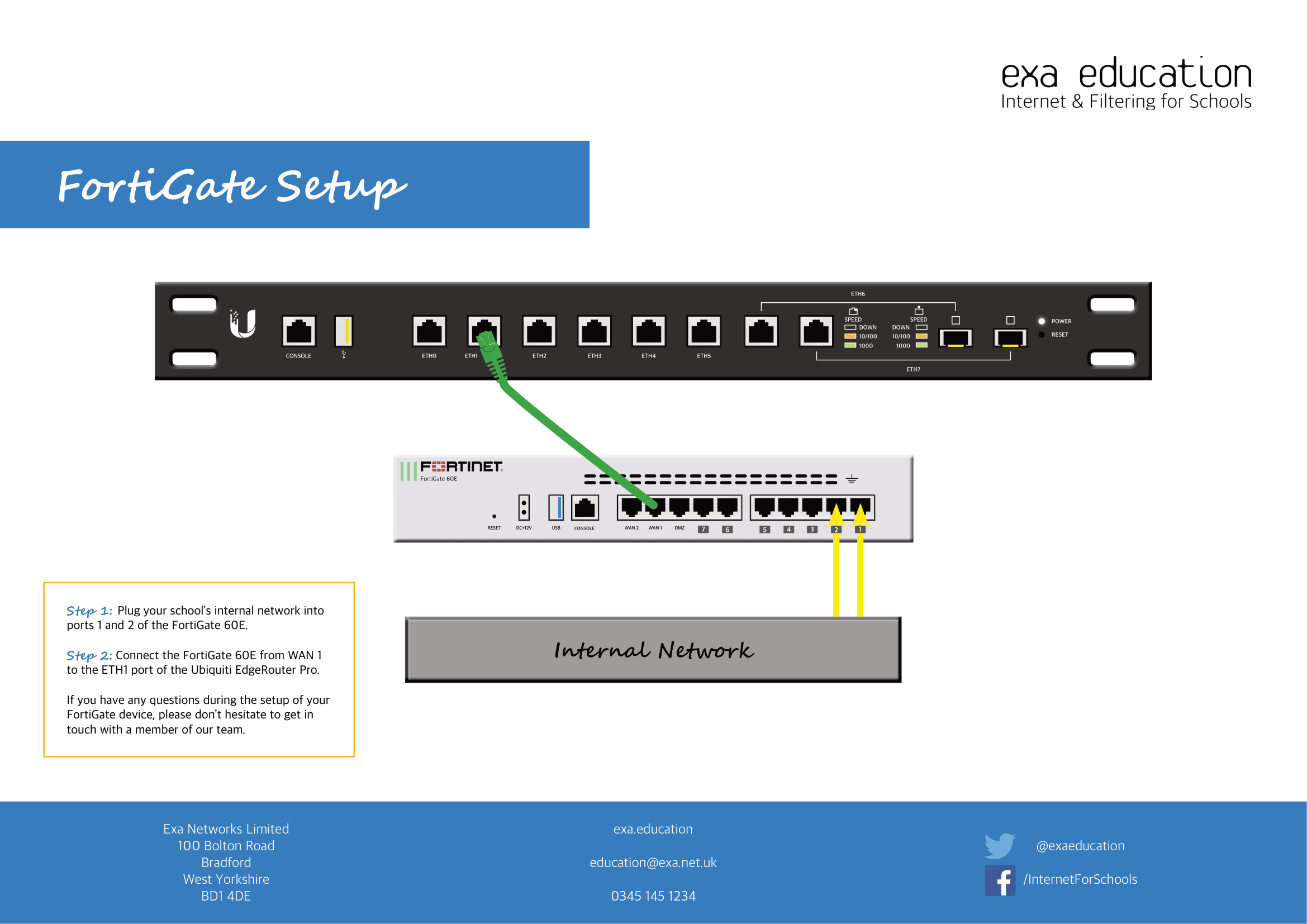

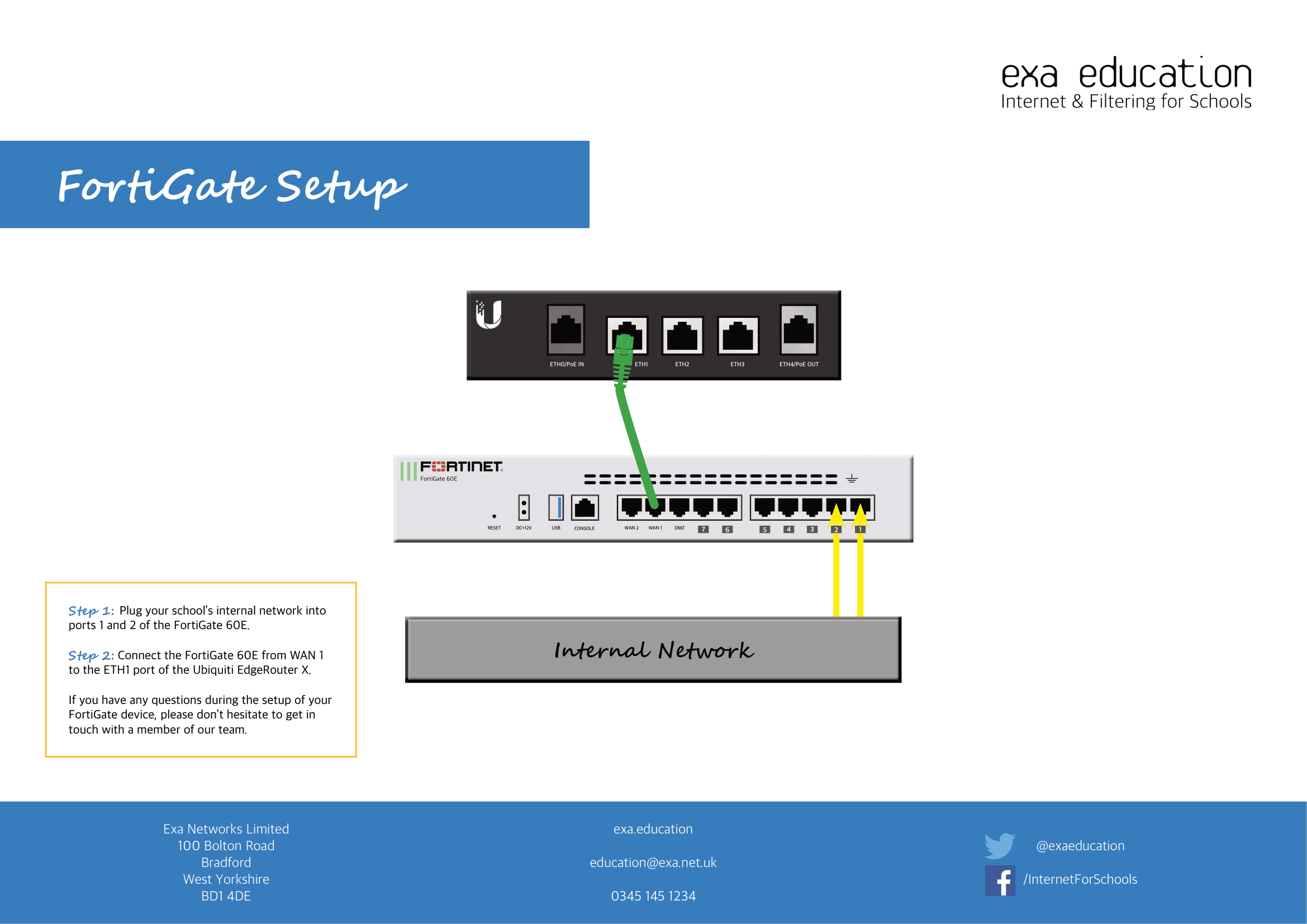

↓ Fortigate 60E ↓

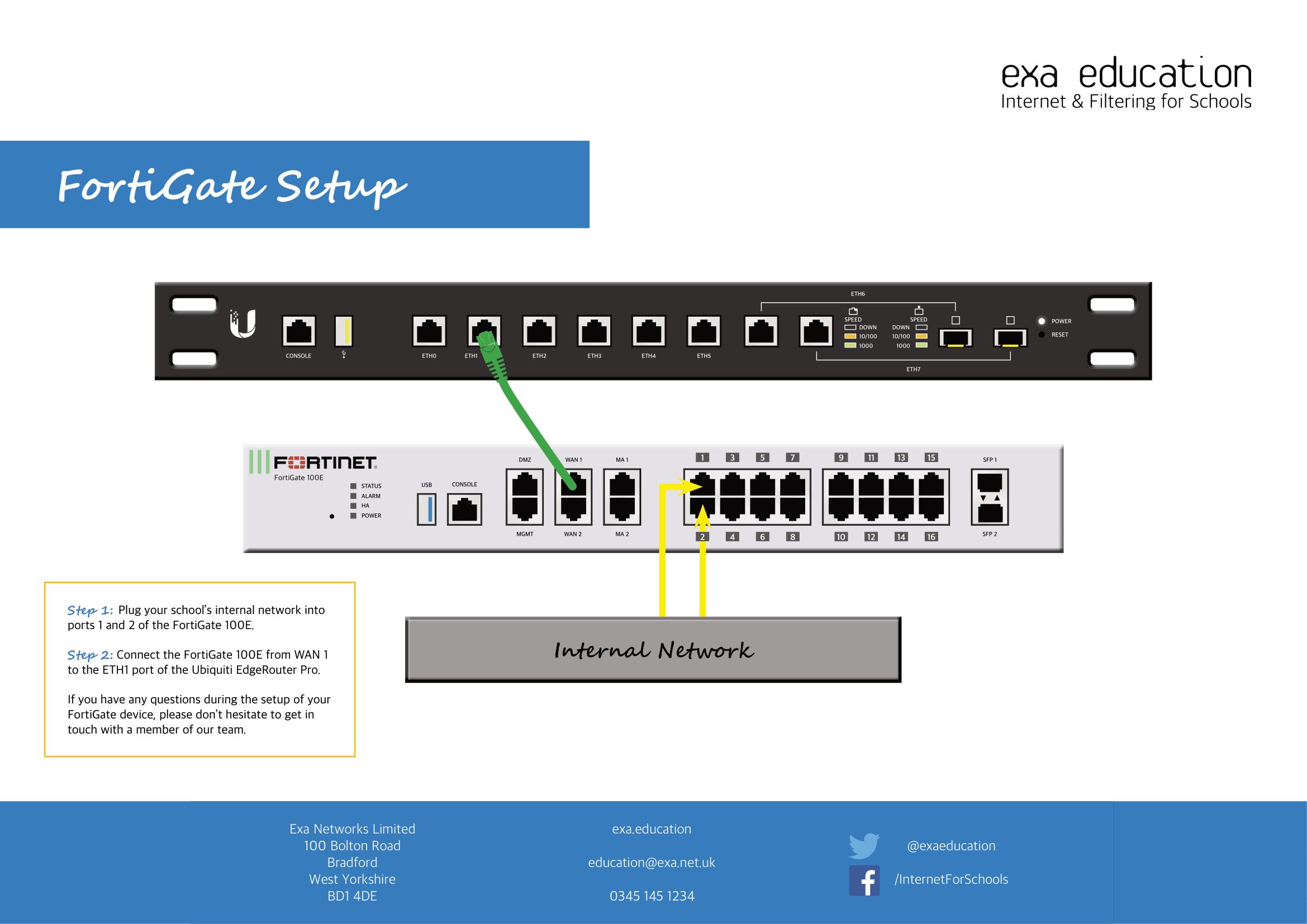

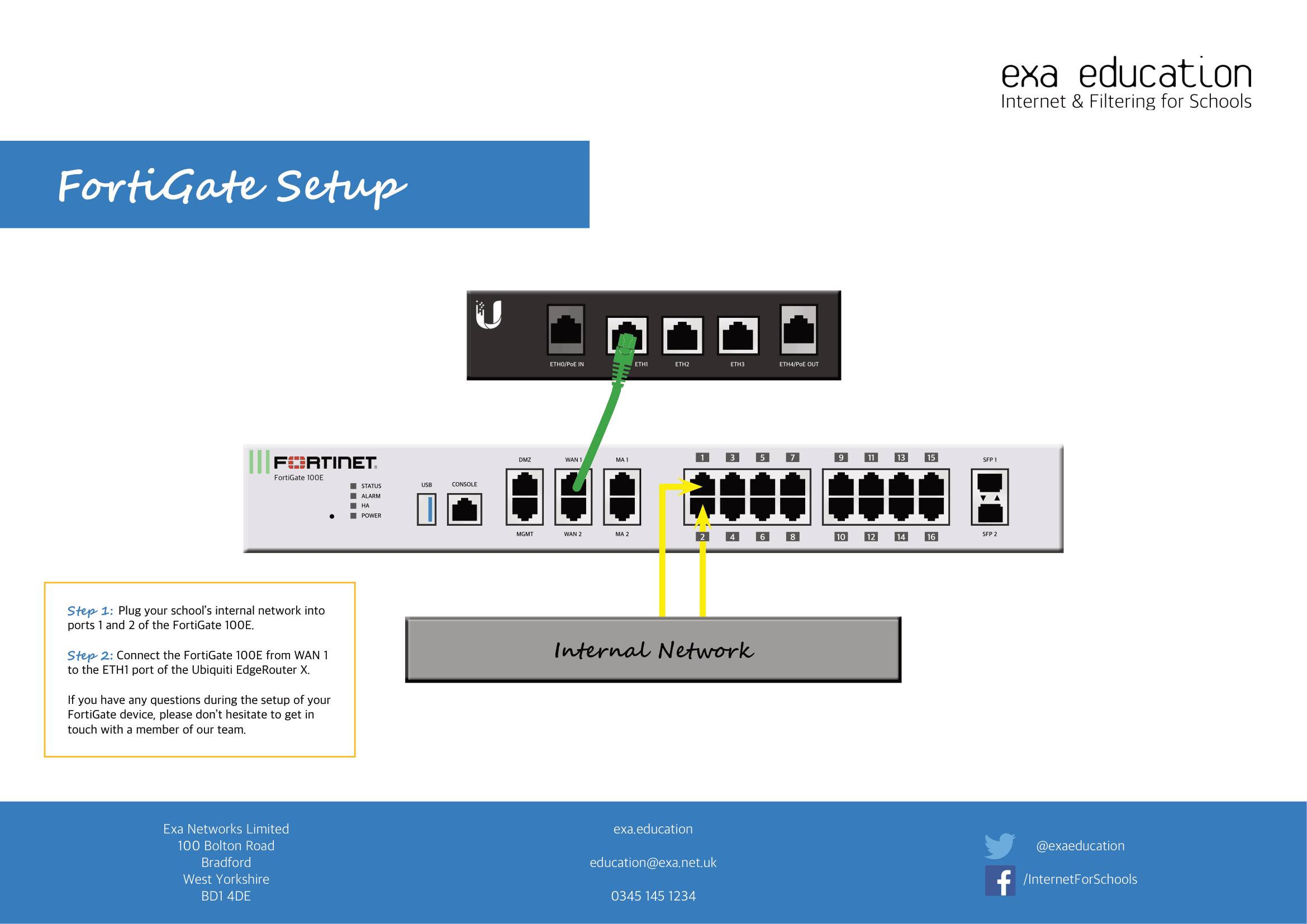

↓ Fortigate 100E ↓

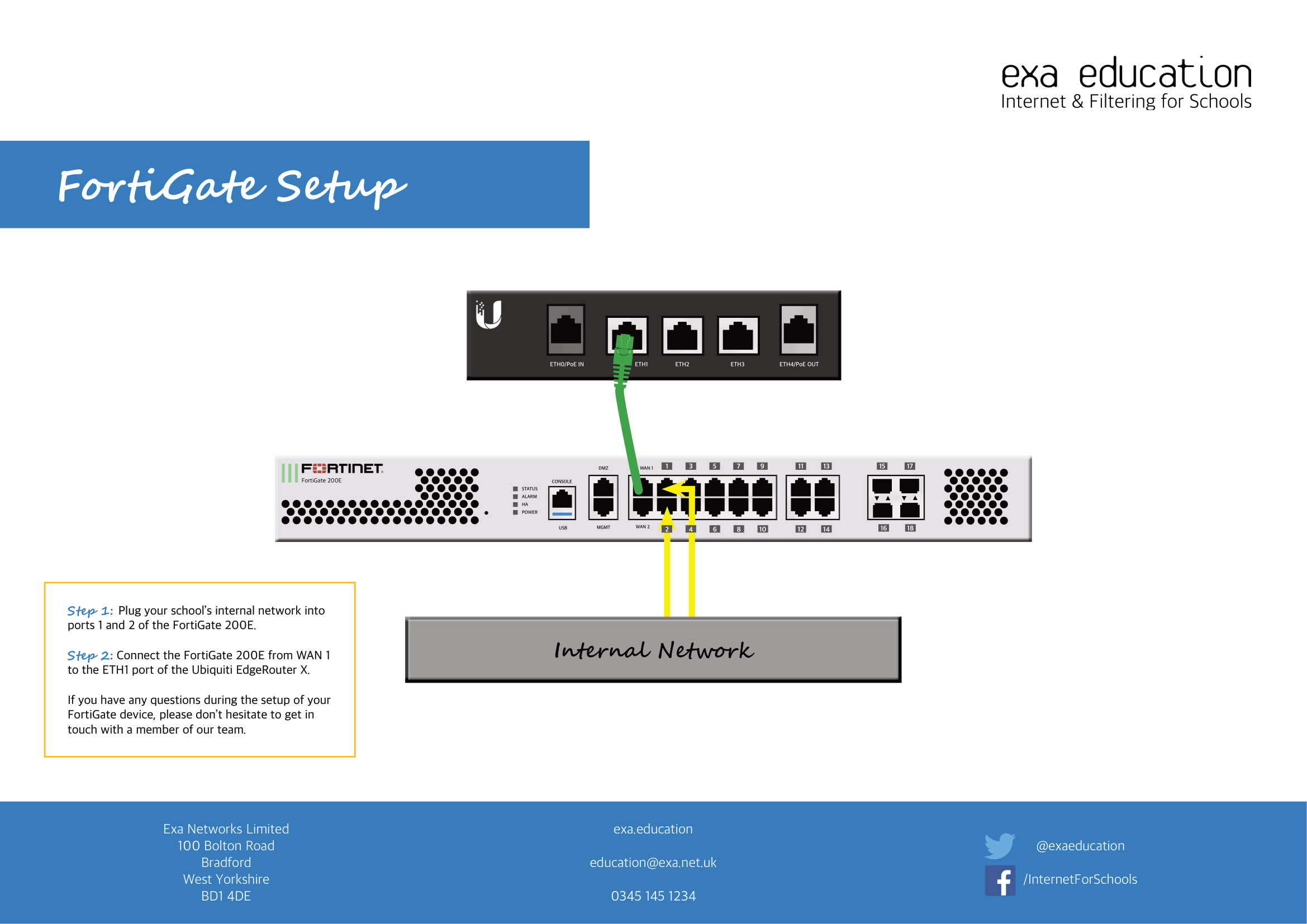

↓ Fortigate 200E ↓
